Available in Extras With Libs Set
JMS Send and Receive Sampler since 1.0.0

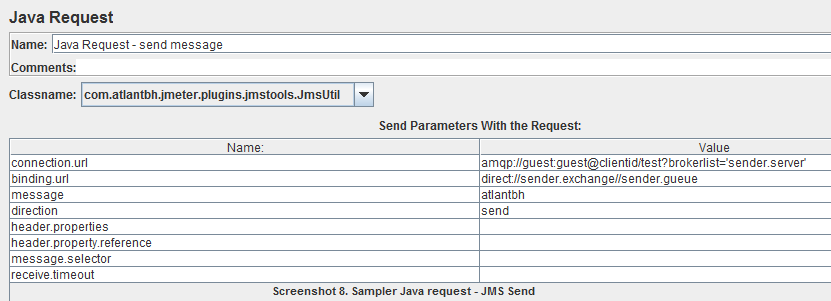

If you are using JMS (Java Message Service) to send and receive messages between two or more clients, we have created a sampler which enables you to send and receive messages. It is incorporated into the Java request sampler, to use this sampler choose from the classname dropdown list: com.atlantbh.jmeter.plugins.jmstools.JMSUtil.
To send or receive a message the following needs to specified:
Connection and Binding URL correspond to Apache QPID server and queue respectively used for either sending or receiving a message. In the message fileld, we define a message we would like to send.
A definition of whether we are a sender or a receipient is defined in direction using either SEND or RECEIVE.
In the header properties, we can add additional; separated properties that we would like to add to our message that we send. Header properties reference on the other hand is the a property where a received message is stored.
Message selector is used as a filter for received messages (ex: variable=’value’). In the QPID case, it is used as a filter on the receipient queue.
Receive timeout is the amount of time a receiver waits for a message to be received. In the case of QPID, it means a time for a message to arrive to a specific queue. Tomeout is defined in ms. If not provided, default value is 3000ms or 30 sec.
